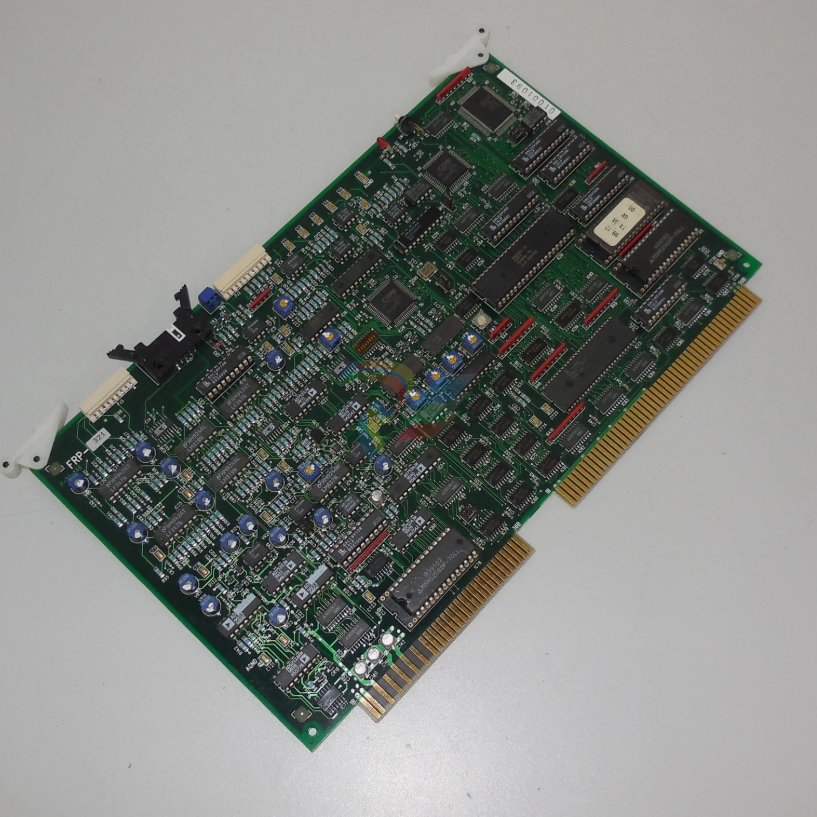

The Shinkawa FRP-321 (Part Numbers: P-26-54A and P-26-54B) is a high-precision industrial printed circuit board (PCB) module engineered by Shinkawa Electric Co., Ltd. (Japan). It is designed for real-time signal conditioning, system logic control, and operational monitoring within turbomachinery protection frameworks, heavy automation systems, and Shinkawa semiconductor wire-bonding equipment.

Product Introduction / Overview

The FRP-321 Circuit Board Module serves as a core processing and interface card in modular industrial control racks. It processes continuous input signals from field transducers—such as vibration, displacement, or position probes—and relays conditioned control data to central system processors or monitoring units.

The sub-part designations P-26-54A and P-26-54B specify distinct hardware board revisions, circuit trace configurations, or component populations within the FRP-321 family. Both revisions maintain functional continuity across designated system backplanes and rack frames.

Manufacturer: Shinkawa Electric Co., Ltd. (Made in Japan)

Module Code: FRP-321

PCB Part Numbers: P-26-54A / P-26-54B

Category: Industrial Control & Signal Conditioning Circuit Board

Primary Applications: Turbomachinery Condition Monitoring, Industrial Protection Systems, Semiconductor Manufacturing Equipment

Technical Table

Environmental Tolerance Conditions

To prevent hardware degradation and ensure long-term operational stability, the FRP-321 module must operate within the following environmental bounds:

Operating Temperature Range: 0°C to +60°C (32°F to 140°F)

Storage Temperature Range: -20°C to +70°C (-4°F to 158°F)

Relative Humidity: 5% to 95% RH (Non-condensing)

Vibration Resistance: 10 Hz to 55 Hz, 0.15 mm amplitude (per IEC 60068-2-6)

Shock Resistance: 15g peak acceleration, 11 ms duration

Operating Atmosphere: Free of conductive dust, active organic solvents, corrosive gases, and severe electromagnetic interference (EMI).

Operating Instructions

1.Power Isolation：Safety Prerequisite。

Power down the entire control chassis or rack frame. Disconnect main power feeds and verify that backup supplies are de-energized before touching internal components.

2.ESD Protection Setup：Pre-Handling。

Equip a grounded anti-static wrist strap connected to a verified earth ground to prevent electrostatic discharge damage to onboard microchips.

3.Module Alignment & Sliding：Mechanical Insertion。

Align the edges of the P-26-54A or P-26-54B circuit board with the internal card cage guide rails. Slide the board smoothly into the slot until the rear connector seats firmly into the backplane socket.

4.Securing & System Initialization：Fastening & Power-Up。

Tighten front-panel retaining screws to lock the card in place and establish ground shielding. Restore power and verify system initialization via status LEDs.

Fault Diagnosis

When encountering operational errors related to the Shinkawa FRP-321. use the following diagnostic steps:

Symptom 1: Status LED Unlit / Module Unresponsive

Possible Cause: Loose backplane seating, bent connector pins, or power bus failure.

Corrective Action: Power down the rack, remove the module, inspect edge connector pins for damage, and re-seat the card firmly into the slot. Check rack DC power outputs.

Symptom 2: Signal Drift or Intermittent Channel Readings

Possible Cause: Oxidation on edge contacts, loose field wiring, or external noise interference.

Corrective Action: Clean gold-finger contacts with isopropyl alcohol. Check cable shield continuity and ground loop integrity across signal paths.

Symptom 3: System Over-Range or Channel Fault Alarm

Possible Cause: Open field sensor loop or internal component aging.

Corrective Action: Swap the suspect FRP-321 module with a functional spare unit to isolate whether the issue lies in field wiring or board hardware.

Related Models of the Same Series

The FRP-321 operates alongside other Shinkawa signal processing, interface, and control modules:

FRP-177 / FRP-226 / FRP-227 (P-24-86A / P-24-86B): Sister industrial control and signal conditioning card series.

CPP-91A / CPP-107A / CPP-127 (P-26-74A / P-26-74B): Vibration monitoring and signal conditioning modules.

MDP-104 (P-25-83A / P-25-83B): Microprocessor-based control card.

IOP-160 (P-25-72A / P-25-72B): Industrial I/O expansion card.

PK-147B-1 / PK-147A-1: Signal processing and system interface board series.

Storage Conditions

Packaging: Keep the board sealed inside an anti-static ESD shielding bag with desiccant packs.

Storage Environment: Store in a clean, temperature-controlled indoor space (15°C to 25°C, humidity < 60% non-condensing).

Placement: Store upright on wooden or metal shelves off concrete floors; protect from direct sunlight, chemical fumes, and heavy structural vibration.
