Shinkawa IOP-160 (P-25-72A / P-25-72B) Circuit Board Module

Shinkawa IOP-160 (P-25-72A / P-25-72B) Circuit Board Module

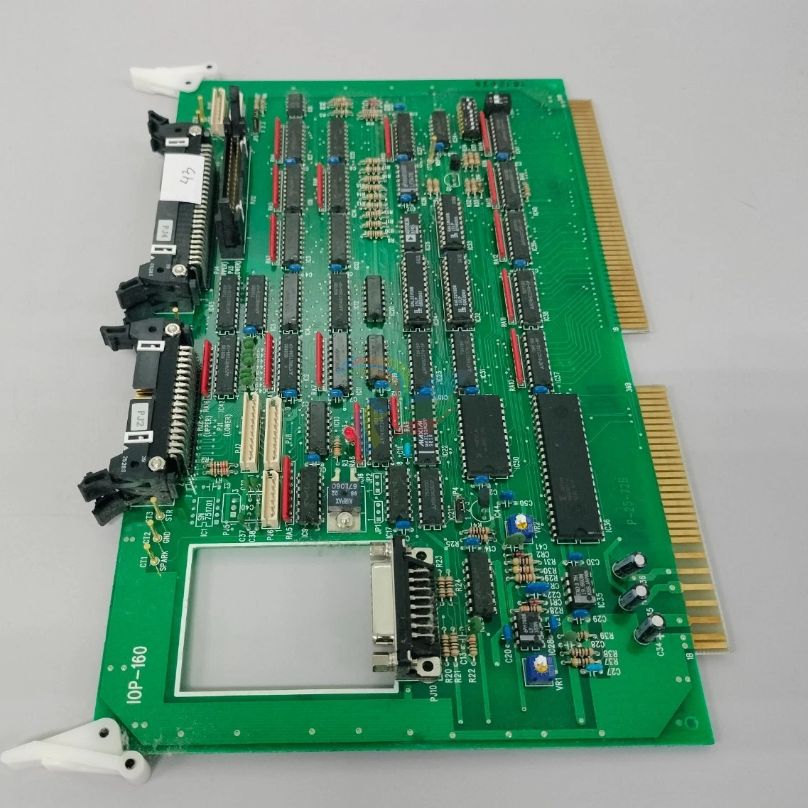

The Shinkawa IOP-160 (Part Numbers: P-25-72A and P-25-72B) is a high-reliability industrial printed circuit board (PCB) module manufactured by Shinkawa Electric Co., Ltd. (Japan). It is designed for input/output (I/O) signal conditioning, system interface management, and operational control within automated industrial control architectures, turbomachinery protection frameworks, and Shinkawa semiconductor wire-bonding equipment.

Product Introduction / Overview

The Shinkawa IOP-160 Circuit Board Module functions as a primary I/O expansion and signal routing interface within modular industrial rack systems. It processes, isolates, and routes field inputs and system control outputs, ensuring stable communications between field sensors, control modules, and main monitoring frames.

The sub-part designations P-25-72A and P-25-72B represent specific hardware board revisions, component placement schemes, or circuit trace layer configurations within the IOP-160 product family. Both iterations preserve operational continuity and functional compatibility across designated system backplanes.

Manufacturer: Shinkawa Electric Co., Ltd. (Made in Japan)

Module Code: IOP-160

PCB Part Numbers: P-25-72A / P-25-72B

Category: Industrial I/O Interface & Signal Conditioning PCB Module

Primary Applications: Turbomachinery Condition Monitoring, Machine Protection Systems, Industrial Automation Control Racks

Technical Parameter List

Product Features / Core Advantages

High-Density I/O Routing: Efficiently handles multiple signal channels to reduce rack space requirements and simplify system architecture.

Industrial-Grade Noise Isolation: Built-in surge suppression and shielded ground planes minimize electrical noise and signal distortion in harsh factory environments.

Revision Flexibility: Available in P-25-72A and P-25-72B hardware configurations to support precise backplane wiring schemes and system firmware versions.

Modular Slide-In Design: Standardized rack card form factor enables rapid installation and field replacement, reducing machinery downtime (MTTR).

Japanese Engineering Quality: Manufactured with high-precision components designed for continuous $24/7$ heavy industrial operation.

Model Classification

The IOP-160 module family is categorized by hardware revision and backplane interface design:

IOP-160 (Base Model): System-level model designation for the complete I/O card assembly.

P-25-72A Revision: Standard production circuit card iteration designed for primary backplane slot architectures.

P-25-72B Revision: Updated circuit card iteration featuring revised component layouts, updated passive elements, or modified pin mappings for later system releases.

Environmental Tolerance Conditions

To maintain long-term system stability and prevent hardware failure, the IOP-160 module must operate within the following environmental limits:

Operating Temperature Range: 0°C to +60°C (32°F to 140°F)

Storage Temperature Range: -20°C to +70°C (-4°F to 158°F)

Relative Humidity: 5% to 95% RH (Non-condensing)

Vibration Resistance: 10 Hz to 55 Hz, 0.15 mm amplitude (per IEC 60068-2-6)

Shock Resistance: 15g peak acceleration, 11 ms duration

Operating Environment: Free of conductive dust, corrosive gas atmospheres, active organic solvents, and strong electromagnetic field interference (EMI).

Installation Method

1.System Power Isolation：Safety Prerequisite。

Disconnect main power to the target control rack or cabinet. Ensure all auxiliary power lines are de-energized prior to handling internal components.

2.ESD Grounding Setup：Pre-Handling。

Equip an anti-static (ESD) wrist strap connected to a verified earth ground to protect sensitive microchips on the board from electrostatic discharge.

3.Module Alignment & Sliding：Mechanical Insertion。

Align the edges of the P-25-72A or P-25-72B circuit board with the card cage guide rails. Slide the board smoothly into the slot until the rear multi-pin connector seats firmly into the backplane socket.

4.Securing & System Verification：Fastening & Power-Up。

Tighten front-panel retaining screws to lock the card in place and ensure proper chassis grounding. Reapply system power and confirm normal initialization via status LEDs.

Operating Instructions

Pre-Power Check: Inspect card seating and front panel retaining screws to ensure proper grounding and connection security before applying power.

System Initialization: Apply rack power and observe status LEDs during power-up to confirm successful self-testing and bus communication.

Signal Verification: Confirm I/O channel integrity and signal routing using central diagnostic tools or monitoring software.

Routine Maintenance: Keep enclosure ventilation paths clear of dust accumulation and inspect card contacts periodically during scheduled maintenance cycles.
