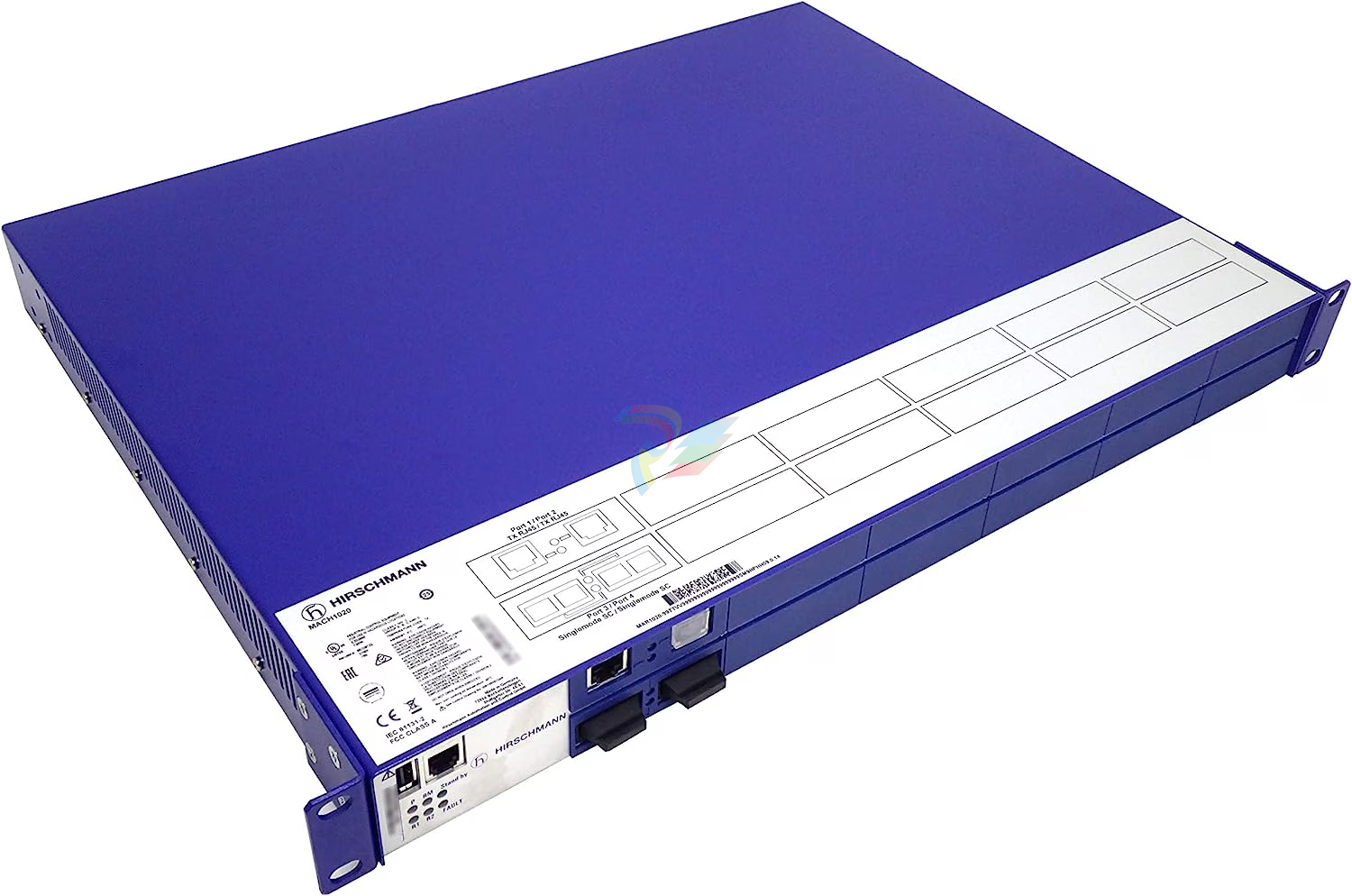

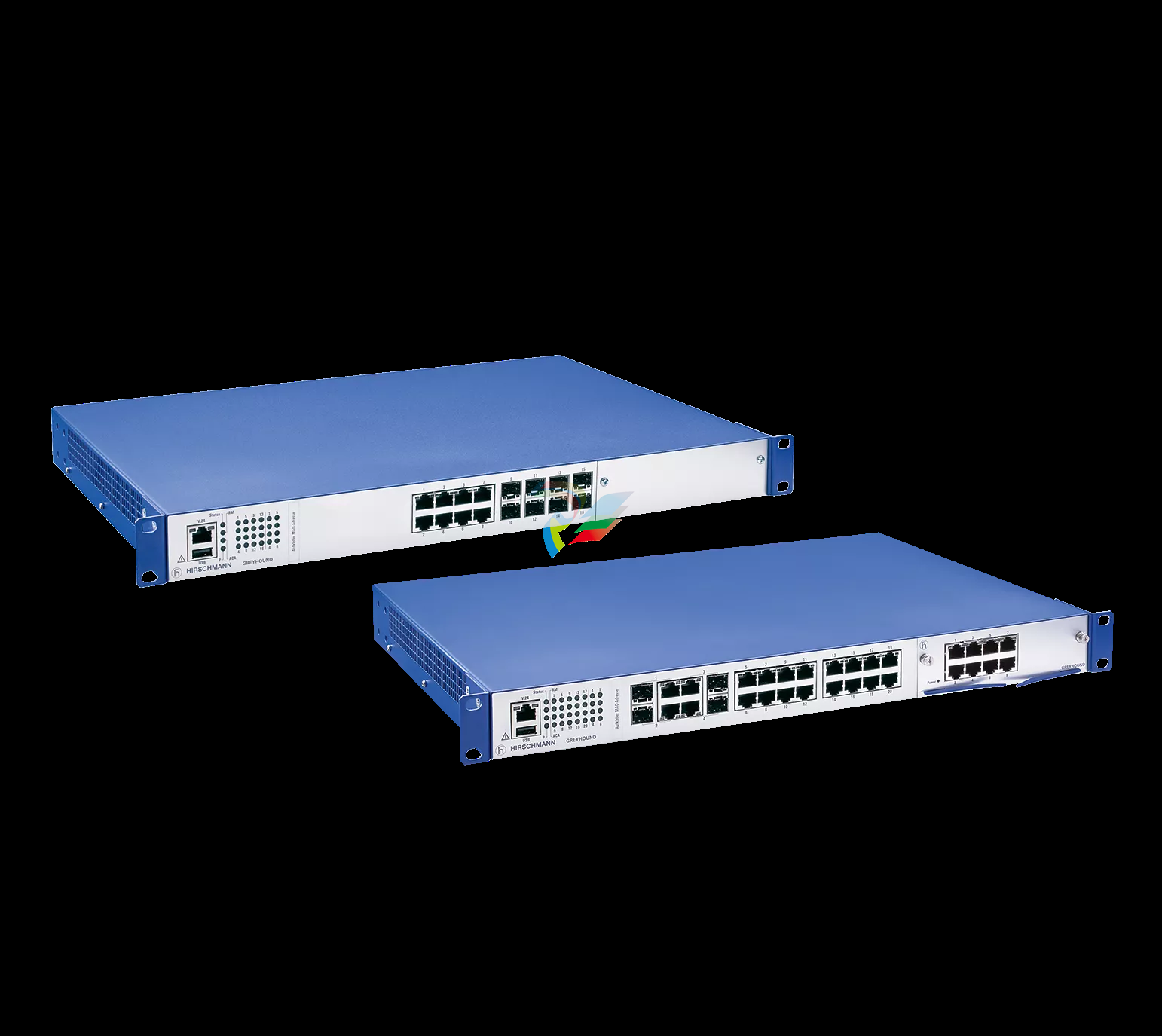

Hirschmann MACH 1020/1030 Fast/Gigabit Rack Mount Switches

Hirschmann MACH 1020/1030 Fast/Gigabit Rack Mount Switches

The MACH1000 devices are an extremely robust network solution for the highest level of both flexibility and security, designed specifically for industrial automation.

They meet the relevant industry standards, offer high port density (up to 28 ports) and provide very high operational and long-term reliability, even under extreme conditions.

eatures & Benefits

Easy Monitoring: Check the status of every switch locally using indicator contacts while also using management software such as Industrial HiVision

Exceptional Performance: Maintain communication with excellent noise immunity and a wide operating temperature range

High-Speed: Experience wire-speed technology for extremely fast functions including multicast routing and router redundancy

You can choose from a wide range of variants. You have the option to set up

your device individually based on different criteria:

 Number of ports

 Transmission speed

 Types of connectors

 Temperature range

 Supply voltage range

 Certifications

The device is designed for the special requirements of industrial automation.

The device meets the relevant industry standards, provides very high

operational reliability, even under extreme conditions, and also long-term

reliability and flexibility.

The device allows you to set up switched Industrial Ethernet networks

according to standard IEEE 802.3.

The device works without a fan.

The device is available with or without PoE functionality.

For devices without PoE, the voltage supply can be redundant if required.

The following installation options are available:

 19" switch cabinet

 Mounting on a flat surface

You have the option of choosing various media to connect to the end devices

and other network components:

 Twisted pair cable

 Multimode F/O

 Singlemode F/O

The ring redundancy concept allows the network to be reconfigured quickly

after a failure.

Product configuration data can be provided by:

 diagnosis displays

 Display of the operating parameters

There are convenient options for managing the device. Manage your devices

via:

 Web browser

 Telnet

 HiDiscovery (software for putting the device into operation

1.2

Combination options

The product designation of your device is made from combining the desired

product characteristics in accordance with the following table. The

corresponding short designation is in column 3.

You have numerous options of combining the device characteristics. You can

determine the possible combinations using the configurator which is

available in the Belden Online Catalog

Product

MAR1020 MACH Ruggedized Fast Ethernet Switch

MAR1030 MACH Ruggedized Gigabit Ethernet Switch

MAR1022 MACH Ruggedized Fast Ethernet Switch with

PoEab

MAR1032 MACH Ruggedized Gigabit Ethernet Switch

with PoEab

MAR1120 MACH Ruggedized Fast Ethernet Switch,

ports on the back

MAR1130 MACH Ruggedized Gigabit Ethernet Switch,

ports on the back

MAR1122 MACH Ruggedized Fast Ethernet Switch,

ports on the back and with PoEab

MAR1132 MACH Ruggedized Gigabit Ethernet Switch,

ports on the back and with PoEab
