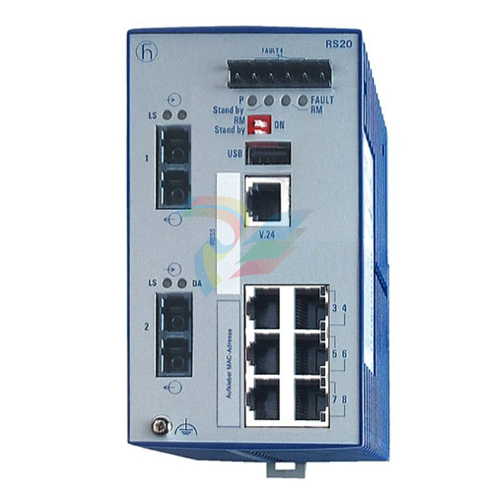

HIRSCHMANN RS20-0800M2M2SDAPHC09.0.14 Industrial Switch

HIRSCHMANN RS20-0800M2M2SDAPHC09.0.14 Industrial Switch

The Hirschmann RS20-0800M2M2SDAPHC09.0.14 is a premium, fully managed Layer 2 OpenRail Fast Ethernet switch designed to deliver reliable real-time communications in complex industrial control environments.

Equipped with a highly resilient hybrid interface, this compact DIN rail unit features 8 ports in total: 6 standard RJ45 Fast Ethernet ports and 2 multi-mode SC fiber-optic ports. Utilizing Hirschmann's Classic Operating System (firmware version 09.0.14), this model provides elite security features, precise diagnostics, and industry-standard redundancy protocols.

Technical Table

Environmental Tolerance Conditions

Operating Temperature: 0°C to +60°C (Standard managed operating range)

Storage & Transport Temp: -40°C to +70°C

Relative Humidity: 10% to 95% (Non-condensing)

Mechanical Strength:

Vibration: IEC 60068-2-6 ($3.5text{ mm}$ amplitude at $2text{ to }9text{ Hz}$, $1text{g}$ acceleration up to $150text{ Hz}$).

Shock: IEC 60068-2-27 ($15text{ g}$ peak force, $11text{ ms}$ duration).

Industrial Certifications: cUL508 (Industrial Control Equipment), CE, FCC Class A, and ISA 12.12.01 Class 1 Division 2 (hazardous area safety).

Operating & Commissioning Instructions

1. Network Integration & IP Assignment

Download the Hirschmann HiDiscovery tool on a computer connected to the same physical network segment.

Launch the utility to detect the switch's unassigned factory MAC address, then input a compatible IP address, subnet mask, and gateway.

Open an HTTPS browser window, enter the assigned IP address, and complete the setup by changing the default administrator password.

2. Physical Redundancy Configuration

To construct a resilient fiber loop without network loops:

Log into the Web Interface and navigate to Redundancy > MRP or HIPER-Ring.

Designate the two optical fiber ports (Ports 1 and 2) as your loop endpoints.

Assign one switch in your ring to act as the Ring Manager (RM) and leave all other nodes configured as Clients.

Fault Diagnosis

Hardware Status LED Interface

Power Indicators (P1 & P2): Steady green light indicates active, healthy incoming VDC power on the respective terminal. An unlit LED signals a source failure or tripped line fuse.

Fault LED (F):

Off: System is healthy.

Red / Solid: Indicates a triggered diagnostic warning (e.g., a critical link is lost, a redundant power supply is down, or the ambient temperature limit is exceeded).

Ring / Standby Manager (RM): Solid green indicates the switch is the active manager controlling a redundant loop.

Dry Contact Relay Alarm

The top 6-pin terminal plug features a dry relay contact.

In normal operations, the contact is closed. If a tracked alarm triggers or the switch loses operating power, the contact breaks open, allowing PLCs or RTUs to instantly detect the outage.

Related Models of the Same Series

The Hirschmann RS20 platform supports a variety of port counts and hardware options:

RS20-0400M2M2...: Compact 4-port variant (2 RJ45 + 2 Multi-Mode SC).

RS20-0800S2S2...: 8-port version utilizing Single-Mode (S2) SC fiber ports for long-haul configurations up to 30 km.

RS20-1600...: High-density 16-port Fast Ethernet unmanaged/managed switches.

RS30 Series: Identical housing profile, but includes Gigabit Ethernet uplink combo ports.

Storage Conditions

To ensure the long-term reliability of the optical and copper connections before installation:

Temperature Range: Maintain storage between $-40^{circ}text{C}$ and $+70^{circ}text{C}$.

Humidity Threshold: Ensure relative humidity stays below $95%$ in a non-condensing environment.

Corrosion & Dust Prevention: Keep the switch stored inside its original static-shielded packaging. Keep the plastic protective caps on all SC fiber transceivers until the cables are connected to protect the internal glass interfaces from dust contamination.
