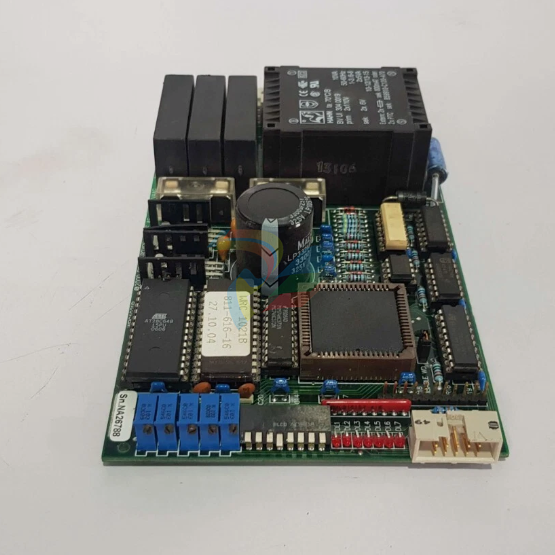

Rolls-Royce MPC-210 Winch & Propulsion Control Module

Rolls-Royce MPC-210 Winch & Propulsion Control Module

Introduction

The Rolls-Royce Marine MPC-210 (often branded under the Aquamaster-Rauma and Ulstein portfolios) is a heavy-duty, marine-grade electronic microprocessor control module.

Engineered by Rolls-Royce Oy Ab in Finland, the MPC-210 is primarily deployed as an expansion or standalone processing unit paired with the MPC-200 base system.

It serves critical functions in marine winch control electronics, deck machinery automation, and Aquamaster azimuth thruster propulsion networks, delivering reliable multi-speed control, torque limit monitoring, and automated safety systems.

Technical Parameter Table

Related Models

The MPC series comprises scalable modules engineered to harmonize automated deck environments:

Rolls-Royce MPC-200: The fundamental base control processor module.

Rolls-Royce MPC-220 / MPC-300: Advanced iterations providing advanced motor protection, logging, and extended digital I/O processing.

Rolls-Royce 5880-PC1028 / PC1019: Interface and power distribution PCB variants commonly co-located within the central automation rack.

Application Cases

The MPC-210 module is utilized globally within highly demanding marine and offshore automation topographies:

Aquamaster Azimuth Thruster Control: Integrates with steering gear and azimuth positioning controllers for close-quarters dynamic positioning.

Automated Deck Winches: Coordinates multi-stage hydraulic or electric anchor-handling and towing winches, allowing smooth transitions across 3 independent speed steps.

Constant Tension Systems: Manages mooring operations by monitoring rope tension via sensory hysteresis loops, automatically adjusting lines without manual crew intervention.

Product Advantages and Features

Precision Multi-Speed Logic: Features programmable starting times for multi-tier motor operations, ensuring smooth speed acceleration profiles to safeguard gearboxes.

Dynamic Overload and Overcurrent Protection: Functions natively as an integrated watchdog system, stopping or reversing motor drivers when nominal capacity is breached.

Hysteresis Automated Tension Adjustments: Keeps rope tension perfectly locked within pre-set thresholds (e.g., scalable from 40% up to 100% of nominal load bounds).

Marine-Specific Environmental Integrity: Hardened architecture engineered to neutralize structural vessel vibrations, radio frequency interferences (RFI), and corrosive salt-air conditions.

Other Models in the Same Series

Rolls-Royce WRC1021B Controller Board

Rolls-Royce UN975 Alarm Panel Module

Ulstein Propeller AIO1036A Analog Input/Output Interface Card

Rolls-Royce RRDIO15 / RRRLY8 Digital Rack Modules

Installation and Maintenance

Installation

Enclosure Mount: Fit the MPC-210 onto its designated DIN rail section or motherboard rack layout within the primary marine starter enclosure or the Marex Cabinet.

Jumper Customization: Configure physical internal hardware jumpers (J1 through J5) according to your technical starter circuit diagram to dictate proper motor/winch speed delays.

Terminal Wiring: Secure field connections via screw terminal blocks. Separate local sensor cables (0X layout) from master control columns (1X and 2X lines) to avoid signal bleeding.

Maintenance

Quarterly Diagnostic Syncs: Run standard automatic-tension stress checks to ensure the unit accurately transitions into fallback protection states when tension drops or spikes.

Terminal Inspections: Verify all screw connections remain properly torqued against ongoing vessel vibration profiles.

Environmental Monitoring: Keep the primary module cabinet free from dust and moisture condensation layers, ensuring cooling paths stay unrestricted.

Unique Product Description

Achieve Flawless Deck Machinery Control with the Genuine Rolls-Royce MPC-210 Module

Maximize operational safety and processing precision in heavy maritime environments with the Rolls-Royce Aquamaster MPC-210 Control Unit.

Explicitly designed to handle high-stress marine winch and azimuth steering demands, this controller brings robust, field-tested automation logic straight to your vessel's hardware racks.

From managing complex constant-tension mooring setups to safeguarding high-torque motors, the MPC-210 (Item Ref: A7021101) stands as a premier solution for global fleet infrastructure longevity.
