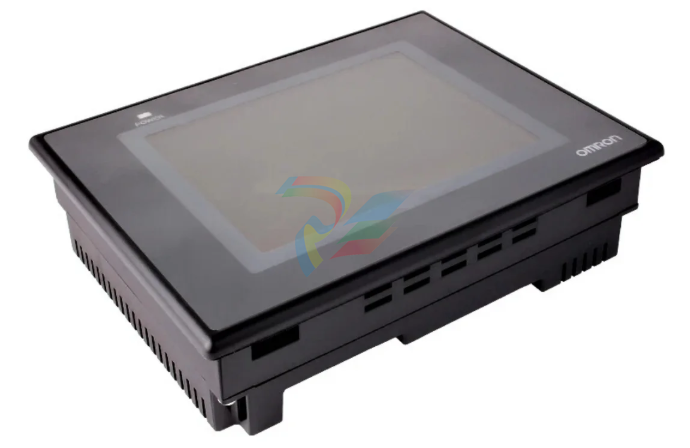

OMRON NB7W-TX01B INTERACTIVE DISPLAY PLC

OMRON NB7W-TX01B INTERACTIVE DISPLAY PLC

USB-Serial Conversion Cable

Applicable OS

Windows XP/Vista/7/8/10 *1

Applicable software CX-Thermo version 4.6 or higher

Applicable models

E5@C-T Series, E5@C Series, and E5CB Series

USB interface standard Conforms to USB Specification 2.0

DTE speed

38.400 bps

Connector

specifications

Power supply

Computer: USB (Type A plug)

Digital Temperature Controller: Special

serial connector

Bus power (Supplied from the USB host controller) *2

Power supply voltage 5 VDC

Current consumption 450 mA max.

Output voltage

Output current

Ambient operating

temperature

Ambient operating

humidity

4.7±0.2 VDC (Supplied from USB-Serial

Conversion Cable to the Digital Temperature

Controller.)

250 mA max. (Supplied from USB-Serial

Conversion Cable to the Digital Temperature

Controller.)

0 to 55°C (with no condensation or icing)

10% to 80%

Storage temperature −20 to 60°C (with no condensation or icing)

Storage humidity

10% to 80%

Altitude

Weight

2.000 m max.

Approx. 120 g

Windows is a registered trademark of Microsoft Corporation in the

United States and or other countries.

*1.CX-Thermo version 4.65 or higher runs on Windows 10.

*2.Use a high-power port for the USB port.

Note: A driver must be installed on the computer. Refer to the Instruction

Manual included with the Cable for the installation procedure.

Communications Specifications

Transmission line

connection method

Communications

RS-485: Multidrop

RS-485 (two-wire, half duplex)

Synchronization method Start-stop synchronization

Protocol

Component

Communi

cations *1

Copying

When Digital Temperature Controllers are connected,

set points and RUN/STOP commands can be sent

from the Digital Temperature Controller that is set as

the master to the Digital Temperature Controllers that

are set as slaves.

Slope and offsets can be set for the set point.

Number of connected Digital Temperature

Controllers: 32 max. (including master)

When Digital Temperature Controllers are connected,

the parameters can be copied from the Digital

Temperature Controller that is set as the master to the

Digital Temperature Controllers that are set as slaves.

MELSEC is a registered trademark of Mitsubishi Electric Corporation.

KEYENCE is a registered trademark of Keyence Corporation.

*1.A Temperature Controller with version 2.1 or higher is required for

the FX Series or the KV Series.

*2.Both the programless communications and the component

communications support the copying.

Current Transformer (Order Separately)

Ratings

E54-CT1

E54-CT3

E54-CT1L

E54-CT3L

Dielectric strength 1.000 VAC for 1 min 1.500 VAC for 1 min

Vibration resistance

Weight

Accessories

50 Hz, 98 m/s2

E54-CT1: Approx. 11.5 g

E54-CT3: Approx. 50 g

E54-CT3 Only

Armatures (2)

Plugs (2)

E54-CT1L: Approx. 14 g

E54-CT3L: Approx. 57 g
