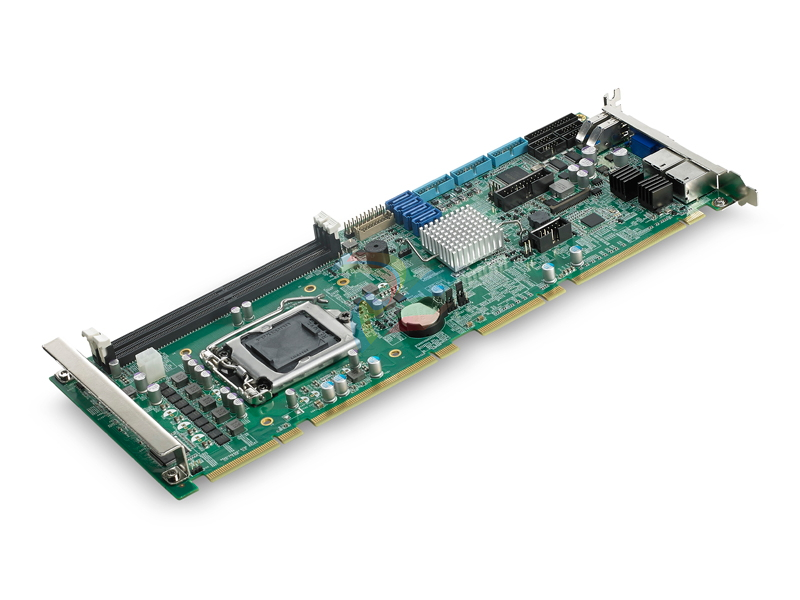

PICMG® 1.0 Full-Size LGA775 Intel® Core™2 Duo SBC with DDR2. GbE, SATA, & IDE

Key Features

PICMG® 1.0 Full-Size SBC

Supports up to 1066 MHz FSB LGA775 Intel® Core™2 Duo processor

Intel® Q965 + ICH8 chipset with Dual-Channel DDR2 667/533 MHz

Supports PCI Express® x1 Gigabit Ethernet port

Specifications

Processor & System

CPU Intel® Core™2 Duo E6400. 2.13GHz, 1066MHz FSB, 2MB L2

Cache, 65nm, 65W TDP, LGA775

Intel® Core™2 Duo E4300. 1.8GHz, 800MHz FSB, 2MB L2

Cache, 65nm, 65W TDP, LGA775

Intel® Pentium® Dual Core E2160. 1.8GHz, 800MHz FSB,

1MB L2 Cache, 65nm, 65W TDP, LGA775

Intel® Celeron® 440. 2.0GHz, 800MHz FSB, 512KB L2 Cache,

65nm, 35W TDP, LGA775

Intel® Pentium® 4 651. 3.4GHz, 800MHz FSB, 2MB L2 Cache,

65nm, 95W TDP, LGA775

Intel® Celeron® D 352. 3.2GHz, 533MHz FSB, 512KB L2

Cache, 65nm, 95W TDP, LGA775

Chipset Intel® Q965 + Intel® ICH8 chipset

Memory Dual-Channel DDR2 800/667/533 MHz, up to 4 GB

BIOS Award 8 Mb flash memory

Watchdog Timer 1-255 sec. or min. software programmable and can generate

system reset

Hardware Monitor CPU/System temperature, fan speed and onboard DC

voltages

Operating Systems Windows® XP, 7 32/64-bit, Server 2003

Fedora™ Core 7

I/O Interfaces

IDE (PATA) 1x UltraATA 66/100/133

Serial ATA 2x SATA 3 Gb/s ports

USB 4x USB 2.0 ports by onboard pin headers

KB/MS 1x PS/2 keyboard/mouse

Parallel Port 1x LPT

Serial Port 1x RS-232. 1x RS-232/422/485

Audio

Audio Codec Realtek® ALC883 Codec

Interface Audio pin header

Display

Graphics  Intel® 965 integrated VGA (GMA 3000)

Ethernet

Controller Onboard Marvell 88E8056 GbE controller

10/100/1000Base-T Gigabit Ethernet

Interface x1 PCIe® bus

Wake On LAN Yes

Mechanical and Environmental

Form Factor Standard Full-Size PICMG® 1.0 SBC

Dimensions 338 mm x 122 mm (L x W)

Operating Temp. 0˚C to 60˚C

Storage Temp. -20˚C to 80˚C

Certifications CE, FCC Class A

Relative Humidity 10% to 90%, non-condensed

Ordering Information

Model Number Description/Configuration

NuPRO-852LV PICMG® 1.0 Full-Size LGA775 Intel® Core™2 Duo SBC with

Q965. DDR II, GbE, SATA II, IDE

NuPRO-852DV PICMG® 1.0 Full-Size LGA775 Intel® Core™2 Duo SBC with

Q965. DDR II, Dual GbE, SATA II, IDE

Note 1: CPU, Memory module and Cooler kit are not included.

Optional Accessories

Model Number Description/Configuration

LGA775 1U CPU Cooler LGA775 1U Thermal Module

LGA775 3U CPU Cooler LGA775 3U Thermal Module

Backplate Backplate for 3U CPU cooler

Audio Cable Audio Cable for NuPRO-852

Packing List

NuPRO-852 1x COM+Parallel port cables with bracket

1x Y-cable for PS/2 keyboard/mouse 2x SATA data cables

1x UltraATA 100 IDE cable 2x SATA power cables

1x USB 2.0 cable with bracket  Driver CD

1x COM port cable with bracket User’s manua
