ADLINK PCI-7260 Digital I/O

ADLINK PCI-7260

Digital I/O

PCI-7260

8-CH High-Power Relay Outputs & 8-CH Isolated Digital Inputs Card

Key Features

Pluggable connector for high current input

Initial state and safety state setting by DIP switches

Built-in watchdog timer

Supports universal 32-bit 3.3V and 5V PCI bus

8-CH high power relay outputs (5A @ 250VAC or 30VDC)

8-CH isolated digital inputs with AC-filter

1-CH emergency shutdown input

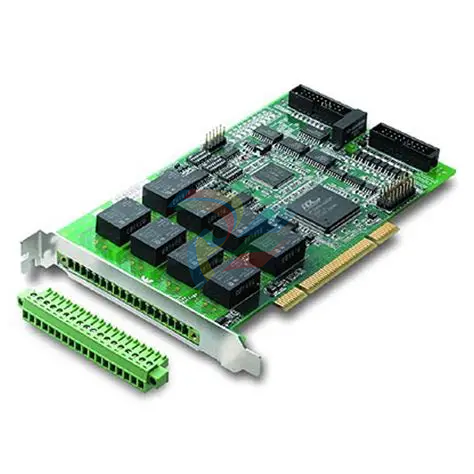

PCI-7260 is a PCI-bus, high-power relay output card for industrial automation and machine control.

Each of all eight channels is capable to switch 5A current at 250VAC or 5A current at 30VDC.

Its pluggable front-panel connector gives consideration to both carrying high current and easy wiring.

The PCI-7260 also provides eight isolated digital input channels with debouncing circuit.

Futhermore, PCI-7260 supports advanced features to make it feasible for industrial applications.

The emergency shutdown input on the front panel lets users get back to a safety state set by a DIP switch regardless the system condition.

The initial output status when powering on can be also set by a DIP switch.

 A built-in watchdog timer guarantees you that all the relays go back to the safety state when your compute halts.

Features

■ Supports a 32-bit 3.3 V or 5 V PCI bus

■ 8-CH high power relay outputs

■ 5 A at 250 VAC

■ 5 A at 30 VDC

■ 8-CH isolated digital inputs

■ 8-CH relay status outputs

■ 1-CH emergency shutdown input

■ Pluggable connector for high current input

■    Onboard    LED    indicators    for    relay    status

■ Initial and safety state setting by DIP switches

■ Interrupt generated from

• COS (Change-of-State) of DI

• CH0/CH1 rising edge

■ Built-in watchdog timer

■ Operating Systems

• Windows 7/Vista/XP/2000/2003 Server

Recommended Software

• AD-Logger

• VB.NET/VC.NET/VB/VC++/BCB/Delphi

• DAQBench

■ Driver Support

• DAQPilot for LabVIEW™

• DAQ-MTLB for MATLAB®

• PCIS-DASK for Windows

• PCIS-DASK/X for Linux

Specifications

Relay Output

■ Number of channels: 8

■ Relay type: Non-latching SPST-NO + SPST-NC

(for output indicator)

■ Contact rating

• AC: 250 V @ 5 A

• DC: 30 V @ 5 A

■ Insulation resistance: 1000 MΩ min. (at 500 VDC)

■ Breakdown voltage: 2000 VAC, 50/60 Hz for 1 minute

■ Contact resistance: 30 mΩ max

■ Operate time: 10 ms max.

■ Release time: 10 ms max.

■ LED indicators: onboard LEDs for relay status

■ Expected relay life

> 105 operations @ 5 A, 250 VAC/30 VDC

■ Data transfer: programmed I/O

Isolated Digital Input

■ Number of channels: 8

■ Input current

• Rated current: 10 mA

• Max current: 50 mA, for isolated input.

■ Input voltage: Up to 24 VDC

• Input high voltage: 10-24 V

• Input low voltage: 0-2 V

■ Input resistance: 4.7 KΩ @ 0.5 W

■ Input mode: AC-filter/ Non-AC-filter

■ Isolation voltage: 2.500 VRMS channel-to-system

■ Interrupt sources

• Change-of-state (COS)

• CH0/CH1 rising edge

■ Data transfer: programmed I/O

Isolation +5 V Power Supply

■ Output Voltage: +5 V

■ Output Current: 170 mA max. (@ 40˚C)

Relay Status Output

■ Number of channels: 8

■ Driving capacity: 15 mA

General Specifications

■ I/O connector

• 18-pin pluggable terminal block connector

• 20-pin ribbon male x2

■ Operating temperature: 0˚C to 60˚C

■ Storage temperature: -20˚C to 70˚C

■ Relative humidity: 35% to 85%, non-condensing

■ Power requirements

■ Dimensions (not including connectors)

175 mm x 107 mm

Certificate

■ EMC/EMI: CE, FCC Class A

■ Safety: EN61010: 2001
