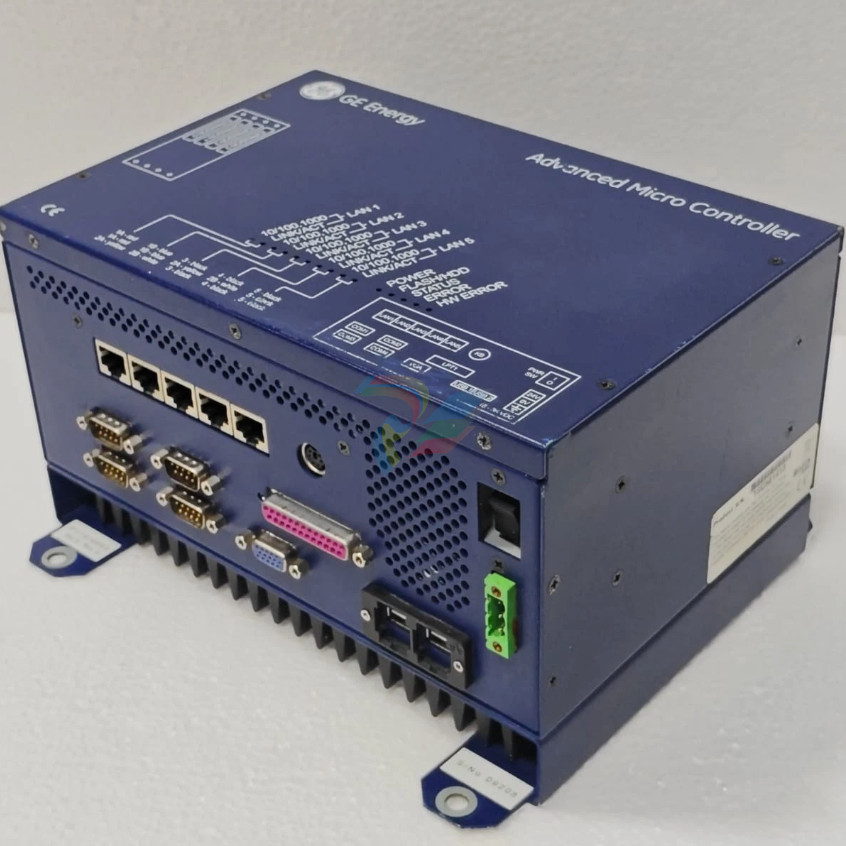

GE Power Conversion P110-6053 Advanced Micro Controller (AMC2)

GE Power Conversion P110-6053 Advanced Micro Controller (AMC2)

1. Product Introduction / Overview

The GE Power Conversion P110-6053 is a high-performance industrial controller belonging to the Advanced Micro Controller 2 (AMC2) platform, originally developed by Converteam (now GE Power Conversion).

Unlike base models utilizing standard 600 MHz processors, the P110-6053 is powered by an upgraded, high-speed Intel Pentium-M (1.40 GHz) processor core. Featuring 5 integrated Ethernet communication ports and robust peripheral support, it acts as a high-capacity processing hub for complex industrial automation, high-speed drive systems, power generation control, and marine dynamic positioning (DP) architectures.

2. Technical Parameter List

3. Product Features / Core Advantages

High-Speed Pentium-M Processing: Upgraded 1.40 GHz CPU core provides increased instruction execution speed, perfect for demanding multi-loop control calculations.

5 Integrated Ethernet Ports: Offers extensive multi-network segmentation, allowing isolated control networks, plant-wide SCADA data links, and redundant host connections.

Industrial Fanless Thermal Design: Engineered for passive cooling operation up to 70 °C ambient panel temperatures, removing failure-prone mechanical cooling fans.

Rugged Solid-State Architecture: Relies on industrial CompactFlash storage to ensure uninterrupted boot routines and data safety under heavy physical vibration.

High Vibration & Shock Tolerance: Tested to rigorous industrial standards (15 g mechanical shock rating per IEC 61131-2), ideal for marine vessels and heavy machinery.

4. AMC2 Model Classification

The GE AMC2 Series categorizes controllers based on processing speed (Celeron-M vs. Pentium-M) and specialized modular fieldbus or serial expansions:

5. Environmental Tolerance Conditions

Operating Ambient Temperature: Rated for operation up to 70 °C inside enclosed industrial panels.

Vibration & Mechanical Shock: Compliant with IEC 61131-2 / IEC 1131-2. rated up to 15 g mechanical shock.

Relative Humidity: 5% to 95% non-condensing.

Enclosure Standard: Must be mounted inside a protective cabinet meeting at least IP54 ingress protection.

Electromagnetic Compatibility (EMC): Heavy industrial immunity rating against voltage surges, fast electrical transients, and high-frequency interference.

6. Installation Method

Mechanical Mounting:

Secure the controller housing via its flange-mount brackets to a clean, flat, grounded metal subpanel inside your cabinet.

Maintain at least 50 mm (2 inches) of unobstructed clearance above and below the unit to allow proper thermal convection across the heatsink.

Electrical Wiring & Grounding:

Wire a regulated 24 V DC (18 V to 36 V DC range) power supply to the primary input terminal strip.

Attach a heavy, low-impedance Protective Earth (PE) bonding cable from the chassis ground stud directly to the enclosure ground bus bar.

Communication Setup:

Plug network cables into the designated RJ45 Ethernet ports (LAN1–LAN5) according to your system architecture drawings.

7. Operating Instructions

Startup Procedure

Verify that the system CompactFlash card and any hardware keys are fully seated in their slots.

Switch on the 24 V DC power source. Monitor the diagnostic indicators on the front panel:

Power LED: Solid green indicates correct input voltage within operational parameters.

Status LEDs: Flashing or steady green states signify successful boot initialization and runtime execution.

Maintenance & Replacement Guidelines

Hardware Transfer: When servicing or swapping a unit, always transplant the original CompactFlash system card and hardware identification key to the replacement P110-6053 controller.

Power Isolation: Always cut off system power before inserting or removing internal PMC expansion modules or memory media to prevent component damage.
