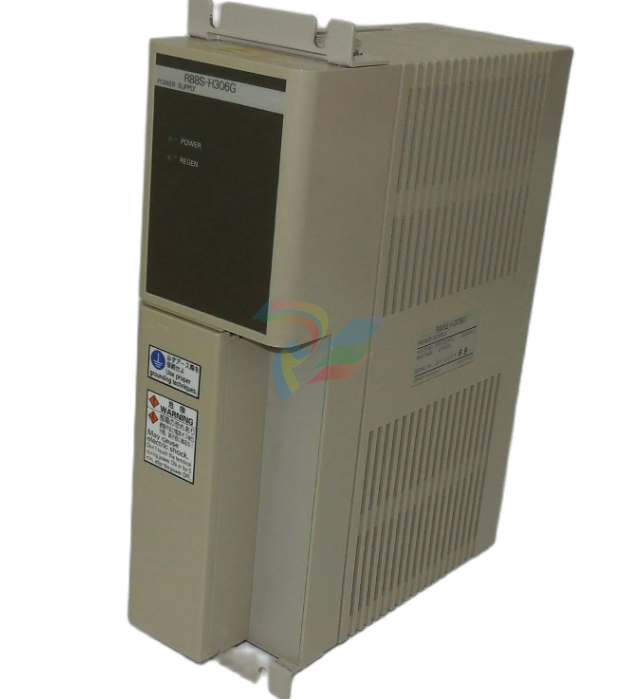

OMRON R88S-H306G plc PLC

OMRON R88S-H306G plc PLC

The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3.When complying with EMC standards, the cable that connects the sensor must be 30 m or less.

If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

4. Refer to Wiring Precautions for E5@C-B (Controllers with Push-In Plus Terminal Blocks) on page 133 for wire specifications and wiring

methods.

5. Common terminals are indicated with asterisks (*). You can use the input power supply and communications common terminals for

crossover wiring. Do not exceed the maximum number of Temperature Controllers given below if you use crossover wiring for the input

power supply.

100 to 240 VAC Controllers: 16 max.

24 VAC/VDC Controllers: 8 max.

Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring). Use a UL

category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring (internal wiring)

The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less.

If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

4. Connect M3.5 crimped terminals.E5CC

Models with 3 Auxiliary Outputs

Sensor input, CT inputs, and remote SP input

Communications and event inputs

E5CC-U

Models with 2 Auxiliary Outputs

Sensor input

Voltage output (for driving SSR) and linear current output

Power

supply

Voltage output (for driving SSR),

linear current output, and transfer output

Relay output

Auxiliary outputs 1. 2. 3

: Reinforced insulation

: Functional isolation

Note: Auxiliary outputs 1 to 3 are not insulated.

E5CC-B

Models with 2 Auxiliary Outputs

Sensor input and CT input

Communications and event inputs

Power

supply

Voltage output (for driving SSR),

linear current output and transfer output

Relay output

Auxiliary outputs 1. 2
