Hirschmann (Belden) SPIDER-PL-20-04T1S29999TY9HHHH Ethernet DIN-rail switch

Hirschmann (Belden) SPIDER-PL-20-04T1S29999TY9HHHH Ethernet DIN-rail switch

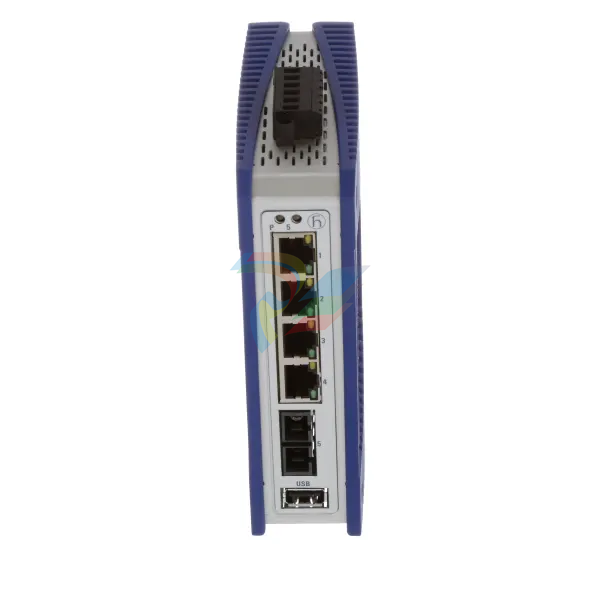

Hirschmann (Belden) SPIDER-PL-20-04T1S29999TY9HHHH (Order Code: SPL20-4TX/1FX-SM-EEC, Part Number: 942141026) is an unmanaged, entry-level industrial Ethernet DIN-rail switch from the SPIDER III Premium Line (PL) series.

Designed for harsh, space-constrained industrial automation environments, it features 4 copper RJ45 Fast Ethernet ports and 1 Single-Mode fiber optic port with SC connections.

 The Premium Line offers advanced configurability via a built-in USB interface, a robust metal enclosure, and extreme thermal resilience.

1. Product Introduction / Overview

Manufacturer: Hirschmann / Belden

Product Family: SPIDER III Premium Line (PL)

Model Code: SPIDER-PL-20-04T1S29999TY9HHHH

Order / Part Code: 942141026 / SPL20-4TX/1FX-SM-EEC

Device Type: Unmanaged Industrial Ethernet Rail Switch

Switching Mode: Store and Forward

Target Applications: Factory automation, energy/utility sub-stations, traffic systems, process control, and edge-level field networks requiring fiber-optic backhaul up to 30 km.

2. Technical Parameter List

3. Product Features & Core Advantages

Plug-and-Play Simplicity: Instant network operational readiness without requiring complex network configuration software.

Long-Distance Single-Mode Fiber: Connects distant field nodes across up to 30 km with immunity to electrical interference and noise.

USB Setup & Customization: Unlike standard unmanaged switches, the SPIDER III Premium Line includes a USB port to enable/disable features like Jumbo Frames,

Quality of Service (QoS) prioritization, broadcast storm protection, and disabling unused ports for improved security.

Redundant Power Input: Dual DC power terminals (9.6 to 32 V DC) ensure zero downtime in the event of a primary power supply failure.

Energy-Efficient Ethernet (IEEE 802.3az): Dynamically lowers power consumption based on network traffic load.

Industrial Compliance: Suitable for PROFINET Conformance Class A applications.

4. Model Classification & Naming Rule Breakdown

The model designation SPIDER-PL-20-04T1S29999TY9HHHH follows Hirschmann’s structured configurator key:

SPIDER - PL - 20 - 04 T1 - S2 - 99 - 99 - T - Y - 9 - HHHH

│ │ │ │ │ │ │ │ │ │ │ └── Hardware/Firmware Code

│ │ │ │ │ │ │ │ │ │ └────── Standard Approvals (CE, FCC, cUL)

│ │ │ │ │ │ │ │ │ └────────── Enclosure: IP40 Metal Housing

│ │ │ │ │ │ │ │ └──────────── Temp Range: Extended (-40°C to +70°C)

│ │ │ │ │ │ └────┴──────────────── Option flags / Standard configuration

│ │ │ │ │ └────────────────────────── Fiber Port: 1x 100BASE-FX Single-Mode SC

│ │ │ │ └────────────────────────────── Connector: RJ45 / SC

│ │ │ └───────────────────────────────── TX Ports: 4x 10/100 Mbit/s Copper

│ │ └────────────────────────────────────── Bandwidth: Fast Ethernet (10/100 Mbps)

│ └─────────────────────────────────────────── Line: Premium Line (PL)

└─────────────────────────────────────────────────── Family: SPIDER III Unmanaged Switch

5. Environmental Tolerance Conditions

6. Installation Method

Mechanical Mounting (35 mm DIN Rail)

Positioning: Hook the top groove of the rear DIN rail clip onto the upper lip of the 35 mm DIN rail.

Snapping In: Press the bottom rear of the unit toward the rail until the spring latch snaps firmly into place.

Disassembly: Pull down the bottom locking latch using a flathead screwdriver and lift the bottom of the switch away from the rail.

[Top Hook] ──► ┌──────────┐ ◄─ Metal Housing (IP40)

│ SPIDER │

│ III │

[DIN Rail] ──► ╞══════════╡

│ PL-20 │

[Bottom Clip] ──► └────┬─────┘

▼ (Pull down to release)

Electrical Wiring & Grounding

Functional Earth Grounding: Connect a protective earth (PE) ground wire to the grounding screw located on the housing chassis prior to applying power.

Power Supply Connection: Wire a 12 V DC to 24 V DC SELV/Class 2 power source (9.6–32 V DC) to the 6-pin terminal block. Connect primary power to $+V1/ -V1$ and optional redundant power to $+V2/ -V2$.

7. Operating Instructions

Port Connections & Status

Copper Ports (1–4): Connect Cat5e/Cat6 STP/UTP ethernet cables into ports 1–4. The Auto-MDI/MDI-X feature automatically detects straight-through or crossover wiring.

Single-Mode Fiber Port (Port 5): Remove dust caps from the SC fiber connector. Insert 9/125 µm Single-Mode fiber cables into the SC transceiver port. Ensure $Tx rightarrow Rx$ and $Rx rightarrow Tx$ alignment.

LED Diagnostics Guide
