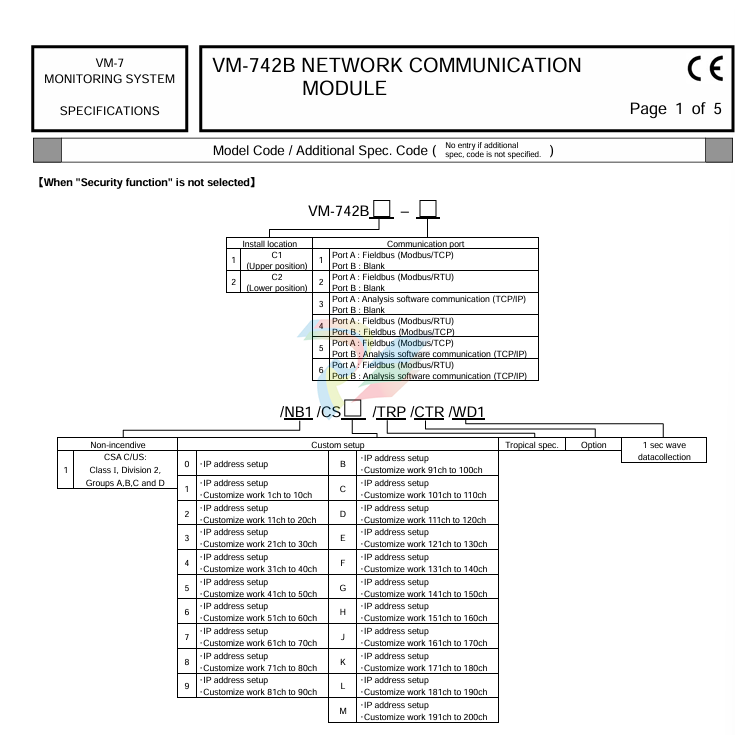

SHINKAWA VM-742B NETWORK COMMUNICATION MODULE

VM-742B NETWORK COMMUNICATION
         MODULE
OUTPUT
Indicator : ACTIVE 1 LED (Green)
 On   : Communication function included
 Off  : Communication function not included
 COMM 1 LED (Green)
 On  : Communication is connected
 Flash  : Communication data is being passed
 Off  : Communication is disconnected
 ACTIVE 2 LED (Green)
 On   : Communication function included
  Off  : Communication function not included
 COMM 2 LED (Green)
 On  : Communication is connected
 Flash  : Communication data is being passed
 Off  : Communication is disconnected
ANALYSIS SOFTWARE COMMUNICATION
Network : Ethernet 100Base-TX
   Max. distance Hub to nodes between 90m.
protocol : TCP/IP
I/O connector : RJ-45 (on VM-76□B rear panel)
Communication item : Dynamic data, Static data, Event history
   Refer to the specification sheet of
   VM-773B infiSYS ANALYSIS VIEW
Note : For redundant analysis software communication, a total of two modules are required.
FIELD BUS COMMUNICATION
Protocol : Modbus/TCP
 Network : Ethernet 10Base-T / 100Base-TX
 Connector : RJ-45 (on VM-76□B rear panel)
   Connection : 2
 : Modbus/RTU
 Network : RS-485
 Baud rate : 9600,19200 bps
 Data length : 8 bit
 Parity*2 : ODD (odd number), EVEN (even number),
  NONE (none)
 Stop bit : 1 bit
 Flow control : None
 Protocols*1 : Modbus®
  Based on AEG Modicon PI-MBUS-300
  Reference Manual. Uses Remote
  Terminal Unit (RTU) transmission mode.
 Slave ID : Set range 1 to 247
 Terminal setting*2   : ON or OFF    Specified when ordering.
     Unless specified otherwise
  Slot C1 : ON
   Slot C2 : ON
 I/O Connector : 9pin D-sub (on VM-76□B rear panel)
Note: For redundancy using Modbus, a total of two modules are required.
 Communication item
 : Data transmitted to host network
 Measurement value, GAP, Danger Alarm status,
 Alert Alarm status, OK Alarm status, Danger Bypass status,
 Setting of DANGER / ALERT, and OK Limit
 High-pass Filter (10pole) ON/OFF status, Power-OK status,
 Analyzed Data *3 (0.5X amp./Phase, 1X amp./Phase,
 2X amp./Phase, Not-1X amp,S(p-p) max.)
  Data received from host network
 Date and Time Data
Option communication item (/CTR) *4
 : Items Controllable from host network
 CH Bypass status ON / OFF, Danger Bypass status ON / OFF,
 Low Alarm Bypass status ON/OFF, Alarm Reset,
 Sequence Mode ON / OFF, High-pass Filter (10 pole) ON / OFF,
   Peak Hold Reset, Firstout Reset
Note)
*1 Modbus is a registered trademark of Modicon, Inc.
*2 Can be changed by internal switch.
*3 When the analysis option is added on VM-701B and/or VM-702B monitor module.
*4 VM-7B can be controlled by the host computer.by adding the option.
Note : The daisy chain connections are eight racks or less.

SECURITY FUNCTION*1
Network : Ethernet 100Base-TX
Protocol : Fieldbus(Modbus/TCP)
   Analysis software communication (TCP/IP)
Connector : RJ-45(Back side of rack)
Filter function : None(non-compliant Security Function)
(Mobus/TCP)              Off(Filter OFF : Maintenance only)
                          On(Client1 only)
(Only one client PC Fileter ON: In Operation)
                          On(Client1 & Client2)
                           (Filter ON for all client PCs)
Filter function : None(non-compliant Security Function)
(TCP/IP)                  Off(Filter OFF : Maintenance only)
On(Filter OFF : In Operation)
Client(1 or 2) MAC Address : MAC Address of PC for Modbus/TCP or infiSYS
 Analisys View
Client(1 or 2) IP Address   : IP Address of PC for Modbus/TCP or infiSYS
Analisys View

*1 About the Security Function
 ・When selecting the presence of "security function", other networks (VM-741B:MCL View) to
unify security policies are also " Please select the presence of security function "
・"Security Function" is the network of "Fieldbus（Modbus/TCP）" and "Analysis software
communication(TCP/IP) ".
・Custom setup of "Security function" can’t be order.
・Select "Security Function", you can meet a global certification program
(Achilles Certification Level 2) that proves to have a certain network robustness.
・Achilles is a registered trademark of GE Digital.
1 SEC WAVEFORM DATA COLLECTION FUNCTION
Sampling interval(VM-701B, VM-702B) : Waveform
 : 1sec (Default value:10sec) -“1 sec waveform data collection function” is available "Analysis software
communication (TCP/IP)" is specified. -“1 sec waveform data collection function” is available when "Security
function" is "None".
ENVIRONMENTAL CONDITION
Operating temperature : 0 to +65°C
Operating temperature at explosion proof construction
  : 0 to +60°C
torage temperature : -30 to +85°C
Relative humidity  : 20 to 95%RH (non-condensing)
POWER CONSUMPTION
Module alone : Less than 15W
MATERIAL AND FINISH
Face plate : ABS (Black)
Sheet : Polyester tough top (Gray)
Base plate : Alminium alloy (Silver)
MASS
Body : Max. 0.5kg ( 1.1lb )
OTHERS

ocation Model Code Network Interface Connector
Communication port Communication type Number
Slot C1
VM-742B1-1 Port A Fieldbus (Modbus/TCP) ①
Port B Blank －
VM-742B1-2 Port A Fieldbus (Modbus/RTU) ②, ③
Port B Blank －
VM-742B1-3 Port A Analysis software communication (TCP/IP) ①
Port B Blank －
VM-742B1-4 Port A Fieldbus (Modbus/RTU) ②, ③
Port B Fieldbus (Modbus/TCP) ④
VM-742B1-5 Port A Fieldbus (Modbus/TCP) ①
Port B Analysis software communication (TCP/IP) ④
VM-742B1-6 Port A Fieldbus (Modbus/RTU) ②, ③
Port B Analysis software communication (TCP/IP) ④
Slot C2
VM-742B2-1 Port A Fieldbus (Modbus/TCP) ⑤
Port B Blank －
VM-742B2-2 Port A Fieldbus (Modbus/RTU) ⑥, ⑦
Port B Blank －
VM-742B2-3 Port A Analysis software communication (TCP/IP) ⑤
Port B Blank －
VM-742B2-4 Port A Fieldbus (Modbus/RTU) ⑥, ⑦
Port B Fieldbus (Modbus/TCP) ⑧
VM-742B2-5 Port A Fieldbus (Modbus/TCP) ⑤
Port B Analysis software communication (TCP/IP) ⑧
VM-742B2-6 Port A Fieldbus (Modbus/RTU) ⑥, ⑦
Port B Analysis software communication (TCP/IP) ⑧
