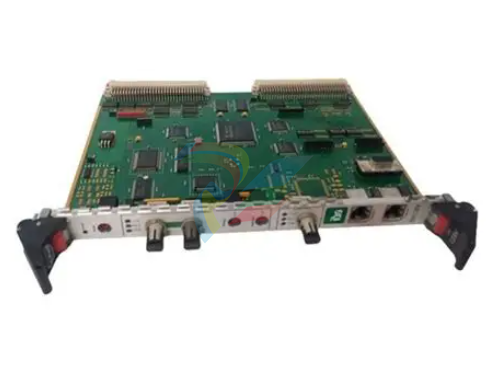

IBA ibaLink-SM-128V-i-2o Synchronous Fiber Optic (ibaNet)

ibaLink-SM-128V-i-2o is a specialized communication interface within the iba ecosystem, specifically engineered for VMEbus systems.

This module serves as a high-speed data bridge, allowing for the bidirectional exchange of information between a VME-based controller and the ibaPDA (Process Data Acquisition) system.

The "i-2o" designation typically signifies a specific configuration of internal links (1 input, 2 outputs) or optimized memory mapping for complex industrial environments.

Technical Parameter Table

Product Advantages and Features

Deterministic Timing: Ensures that data is captured in a time-equidistant manner, which is critical for analyzing high-speed dynamic processes.

Interference Immunity: By using fiber optics, the module is immune to electromagnetic interference (EMI) and radio frequency interference (RFI) common in heavy industry.

Zero CPU Impact: The data exchange occurs via Dual-Port RAM, meaning the VME controller’s CPU does not lose processing cycles to manage the communication protocol.

Bidirectional Capability: Enables not only the recording of data but also the sending of setpoints or control parameters back to the VME system.

Long-Distance Links: Supports cable lengths up to 2000m without signal degradation.

Unique Product Description

The ibaLink-SM-128V-i-2o is the surgical tool of data acquisition. It provides a "window" into the heart of VME-based automation systems, allowing engineers to extract high-resolution process data without the risk of crashing the controller.

It acts as a high-speed buffer that reconciles the real-time world of the factory floor with the analytical power of the ibaPDA software suite.

Related Models & Same Series

The ibaLink-SM series is diverse, catering to various bus architectures and memory requirements:

ibaLink-SM-128V: Standard VME version without the specific "i-2o" configuration.

ibaLink-SM-64-io: A smaller memory footprint (64 KB) for simpler data tasks.

ibaLink-SM-128-PCIE: For modern PC-based architectures requiring the same SM-style protocol.

ibaLink-VME-SD: Designed for older VME systems with specific address space constraints.

Application Cases

Modernizing Legacy Mills: Integrating 20-year-old VME controllers into a modern Industry 4.0 data lake.

Turbine Control: Synchronizing high-speed mechanical vibration data with electrical output parameters in power generation.

High-Speed Packaging: Monitoring synchronized axis movements where millisecond delays can lead to mechanical failure.

Research & Development: Using the VME interface to log prototype control algorithms during testing phases.

Installation and Maintenance

Installation

Hardware Addressing: Use the jumpers or DIP switches on the PCB to define the VME base address.

Seating: Insert the card into the VME rack while the system is powered down. Ensure the ejector levers are locked.

Fiber Connection: Use high-quality multimode fiber with ST connectors. Cross the TX and RX lines correctly to the ibaFOB card in the PC.

Software Definition: In the ibaPDA I/O Manager, add an "SM-128V" module and match the address settings configured on the hardware.

Maintenance

Signal Integrity: Periodically check the "Link" LED. A red or flickering LED usually indicates a dirty fiber optic terminal or a cable bend radius that is too tight.

Cleaning: Use specialized fiber cleaning pens for the ST ports to ensure maximum light transmission.

System Check: During scheduled downtime, verify that the VME rack's power supply is providing a stable 5V, as aging power supplies can cause communication drops.
