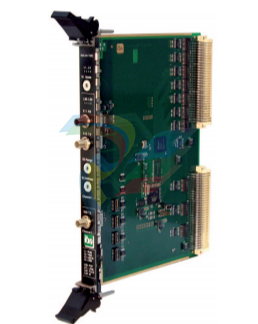

IBA ibaLink-SM-64V: High-Performance S5/S7 Interface

The ibaLink-SM-64V is a specialized communication module designed to bridge the gap between SIMATIC S5 and S7 controllers and the ibaPDA system.

It acts as a high-speed data interface, allowing for seamless, deterministic data acquisition from legacy and modern industrial PLCs.

Technical Parameter Table

Related Models & Same Series

The ibaLink series provides various gateway solutions depending on the specific fieldbus or PLC architecture required:

ibaLink-SM-128V-i: Similar to the 64V but with increased signal capacity.

ibaLink-VME: Designed for VMEbus systems.

ibaLink-SM-64-AD: An alternative variant for specific addressing modes in S5 systems.

ibaLink-SM-128-S7: Dedicated high-speed link for S7-400 systems.

Product Advantages and Features

Deterministic Capture: Unlike standard Ethernet polling, the SM-64V captures data in sync with the PLC's processing cycle, ensuring no "jitter" in your measurements.

Galvanic Isolation: The fiber optic connection provides total electrical isolation, protecting the PDA system from ground loops and industrial noise.

Legacy Integration: It is one of the few reliable ways to extract high-speed diagnostic data from aging SIMATIC S5 systems without upgrading the entire hardware stack.

Plug-and-Play Configuration: Easily integrated into the ibaPDA software environment with minimal manual addressing.

Application Cases

Steel Mill Modernization: Monitoring rolling mill pressures and motor speeds in an old S5-controlled plant where millisecond-level precision is required for quality control.

Turbine Diagnostics: Capturing vibration and temperature data from power generation turbines controlled by S7-400 racks.

Troubleshooting Intermittent Faults: Using the high-speed link to catch "glitches" in PLC logic that are too fast for standard HMI/SCADA systems to see.

Installation and Maintenance

Installation: The module is typically inserted into a free slot in the S5-135U/155U rack or an S7 rack using the appropriate interface adapter. Ensure the fiber optic cables do not exceed the minimum bend radius.

Maintenance: Being solid-state, the module requires little maintenance. Periodically check the FO signal strength via the ibaPDA diagnostics tool and ensure the ST connectors are free of dust.

Firmware: Updates can usually be managed through the iba software suite without removing the hardware.

Unique Product Description

The ibaLink-SM-64V is the "translator" that speaks the language of high-stakes industrial automation.

While most systems settle for snapshots of data, this module provides a continuous, high-definition movie of your PLC’s internal state.

It transforms a standard PLC into a powerful sensor hub, making it an indispensable tool for engineers who need to see exactly what happened at $t = 0.001s$ during a system failure.
