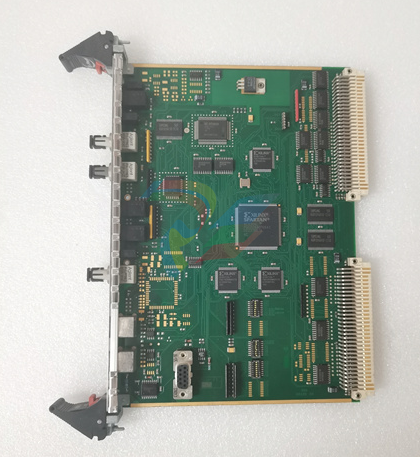

IBA ibaLink-SM-256V: High-Density PLC Data Interface

The ibaLink-SM-256V is a high-performance communication module designed for extreme data density in SIMATIC S5 and S7 environments.

Serving as an evolved successor or higher-capacity alternative to the SM-64V, the "256V" signifies its ability to handle a significantly larger signal volume,

making it the ideal choice for complex industrial processes where a high resolution of internal PLC variables is required.

Technical Parameter Table

Product Advantages and Features

Massive Signal Density: Quadruples the capacity of standard 64-channel modules, allowing for total plant transparency without needing multiple interface cards.

Zero-Load Monitoring: Captures data directly from the backplane; unlike Ethernet-based CP modules, it does not tax the PLC's communication processor or CPU cycle time significantly.

Interference Immunity: Being fiber-optic based, it is immune to electromagnetic interference (EMI), which is critical in heavy industrial environments like smelting or power generation.

Backward Compatibility: Provides a modern data-highway for legacy S5 systems, extending the operational life of expensive machinery while providing modern analytics.

Application Cases

Multi-Stand Rolling Mills: Monitoring thousands of synchronized points across multiple mill stands to ensure strip thickness and tension are maintained at high speeds.

Complex Turbine Control: Capturing hundreds of fast-acting valve positions and vibration sensors in power plants for predictive maintenance.

Large-Scale Paper Machines: Coordinating the vast array of analog signals required to track moisture, speed, and tension across the entire production line.

Other Models in the Same Series

ibaLink-SM-64V: The standard capacity version (64 analog/64 digital).

ibaLink-SM-128V: The mid-range variant for moderate signal counts.

ibaLink-SM-64-AD: Specialized for specific addressing modes in S5.

ibaLink-VME-64/256: Parallel versions for VMEbus-based control systems.

Installation and Maintenance

Installation: Requires a free slot in the central or expansion rack of the SIMATIC S5/S7.

 The module is configured via the ibaPDA I/O Manager. Ensure the fiber optic link is "closed-loop" for bidirectional diagnostics.

Cabling: Use 62.5/125µm or 50/125µm multimode fiber. Ensure the ST connectors are cleaned with isopropyl alcohol before insertion to prevent signal attenuation.

Maintenance: Monitor the "Link" and "Data" LEDs on the front panel. A flickering green "Data" LED indicates active, synchronized communication with the PLC.

Unique Product Description

The ibaLink-SM-256V is the "Big Pipe" of the ibaNet world.

It is designed for engineers who refuse to compromise on data granularity.

While other modules provide a window into the PLC, the 256V removes the wall entirely, allowing for the simultaneous recording of up to 512 total signal points per module.

It is the ultimate diagnostic insurance policy for high-value industrial assets where "missing a signal" is not an option.
