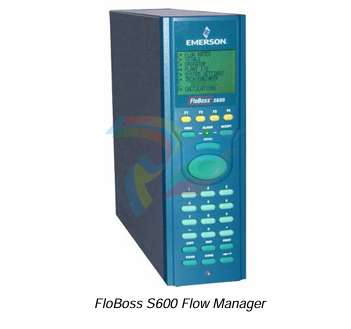

EMERSON FloBoss™ S600 Flow Manager Specification Sheet

The FloBoss S600 Flow Manager is a panel-mount flow computer designed specifically for hydrocarbon liquid and gas measurement where versatility and accuracy matter. The standard features of the unit make it ideal for fiscal measurement, custody transfer, batch loading, and meter proving applications. The unit allows configuration of multi-stream, multi-station applications, enabling you to simultaneously meter liquids and gasses.

The FloBoss S600 Flow Manager is designed for use either as a stand alone Flow Computer or as a system component. The base unit is supplied with a single Input/Output (I/O) board and can be used for both gas and liquid applications. The I/O capability of the single I/O board is detailed on Page 5, but is generally suitable for 2 of 3 streams and a header. Additional I/O boards can be added (maximum of 3) to enable a single FloBoss S600 to handle up to 10 streams and up to 2 headers, with both Gas & Liquid in a single machine. Orifice, ultrasonic, turbine, positive displacement, Coriolis, Annubar, Venturi, and V-Cone flow meter types are all supported.

The Floboss S600 uses distributed processing to achieve maximum performance. The main CPU incorporates a hardware floating point processor. Each additional card also has local processing to convert inputs and output from engineering units to field values and vice-versa, as well as running background tests and PID loops.

All metering calculations are performed using 64 bit (double) precision floating point numbers for the highest accuracy. Cumulative totals are stored in three separate memory locations (Tri-reg format) for maximum integrity. The user language Logicalc™ also allows double precision mathematical functions to be performed on the database objects.

The reliability of the analog performance of the FloBoss S600 allows longer intervals between calibration checks.

The FloBoss S600 Flow Manager offers multiple communication interfaces:

One or two Ethernet 10baseT ports. An optional second Ethernet port can be added if required.

HART communication is facilitated using a 12 channel HART board, supporting point-to-point and multi-drop architectures (up to 50 transmitters).

An embedded webserver allows remote access to the flow computer. Security is provided by way of user name and password protection with a detailed event log for audit purposes. Supports Windows® Internet Explorer® version 5 or greater.

Two configurable EIA-232 (RS-232) serial ports for connection to a printer or RTU.

Three EIA-422/485 (RS-422/RS-485) serial ports (up to 38400 bps baud) for connection to intelligent meters, Modbus SCADA data networks, or a DCS Supervisory System.

One dedicated configuration port for connection to the Config600 configuration software.

Use the software interface (Config600 Lite, Config600 Lite+, or Config600 Pro) to upload and download configurations. You can also create or edit configuration files using Config600 Lite+ and Config600 Pro (refer to the Config600 specification sheet, 4:C600). Finally, the keypad interface on the S600/webserver enables you to review or modify system parameters.

The FloBoss S600 Flow Manager provides the following functions through the Config600 configuration tool:

Stream and station totalization.

 Station densitometer.

Batch totalization and correction.

Station gas chromatograph.

3-term PID control.

Forward, reverse and error totals.

Flow balancing.

Comprehensive maintenance mode.

Flow scheduling.

Coriolis meter interface.

Automatic proving sequence.

Ultrasonic meter interface.

Supports Modbus/TCP or Modbus over Ethernet.
