UniOP eTOP33C eTOP33-0050 Resistive touchscreen

From:UNIOP | Author:kongjiang | Time :2026-03-02 | 232 Browse: | 🔊 Click to read aloud ❚❚ ▶ | Share:

UniOP eTOP33C

The eTOP33C is a state-of-the-art HMI device with touchscreen interface and 10.4” TFT color

graphic display. Support for 64K colors in the brilliant TFT display will increase the realism of the

images. The integrated 10/100 Ethernet interface makes connectivity in complex control systems

much more efficient. The VGA resolution makes it the ideal choice for high-end HMI applications.

10.4” TFT color display

VGA (640x480 pixel) resolution

64K colors

Resistive touchscreen

10/100 Ethernet interface

Connection to industrial bus systems (requires

optional plug-in modules)

Compatible with video input module

64 MB internal user memory

The eTOP HMI panels are part of the UniOP family of touchscreen products. All of the eTOP

products support the rich common functionalities of the UniOP operator panels:

Powerful and intuitive programming with

the UniOP Designer 6 software

Support of more than 130 communication

drivers for industrial devices

Integrated Ethernet port for connection to

field devices as well as programming the

HMI from Designer.

Optional modules for fieldbus systems

(Profibus DP, CANopen, DeviceNet,

Interbus).

Dual-driver communication capability

Vector graphic capabilities including the

support of multiple layers and object

transparency.

Video input option.

Display dynamic data in numerical, text,

bargraph and graphic image formats

Data acquisition and trend presentation.

Trend data can be transferred to an host

computer using the Ethernet connection.

Analog gauge objects

Recipe data storage. Recipe data can be

transferred to an host computer using the

Ethernet connection.

Multilanguage applications. The number

of runtime languages is limited only by the

available memory. All text information in

the application can be exported in Unicode

format for easier translation.

Powerful macro editor to configure

touchscreen operation

Alarms and historical alarm list. Alarm

and event information can be printed or

transferred to an host computer using the

Ethernet connection.

Eight level password protection.

Report printing to serial printer. Reports

are freely configurable using Designer.

Ethernet-based UniNet network to share

data between UniOP HMIs and to serve

data using UniNet OPC Server.

Display

Type TFT

Resolution VGA, 640x480 pixel

Active display area 218x159 mm (10.4”diagonal)

Colors 64K

Backlight CCFL, 50000 h (note 1)

Brightness 300 cd/m2 typ.

Dimming Yes

Memory

User memory 64 MB internal Flash

User memory

expansion

Optional removable 32/64 MB

SSFDC memory card

Front panel

Touch screen Analog resistive

Function keys 1

System keys -

User LED’s  1

System LED’s  4

Interfaces

PC/Printer port Yes

PLC port RS-232. RS-485. RS-422. 20

mA Current Loop

Ethernet port 10/100 Mbit

Aux port (fieldbus) Yes, with optional modules

DX port (video input) Yes

Serial programming

speed

9600 – 38400 bps

Slot for  Local I/O Yes

Functionality

Vector graphics Yes

Dual driver capability Yes

Video input Yes (optional)

Data acquisition and

trends

Yes

Recipe memory 32 KB

UniNet network Client/Server

Alarms 1024

Event list 1024

Password Yes

Hardware RTC Yes, battery backed

Screen saver Yes

Buzzer Yes, audible feedback for

touch screen

Battery 3 V 270 mA Lithium, non

rechargeable, user

replaceable, model CR2430.

Replace with same component

or equivalent compatible with

the operating temperature of

the product.

Ratings

Power supply voltage 24 V DC (18 to 30 V DC)

Current consumption Max 1.2 A at 24 VDC

Fuse Automatic

Weight Approx 2.3 Kg

Environmental

Conditions

Operating temperature 0 to 45 °C

Storage temperature -20 to +70 °C

Operating and storage

humidity

5 – 85 % RH non-condensing

Protection class IP65 (front panel)

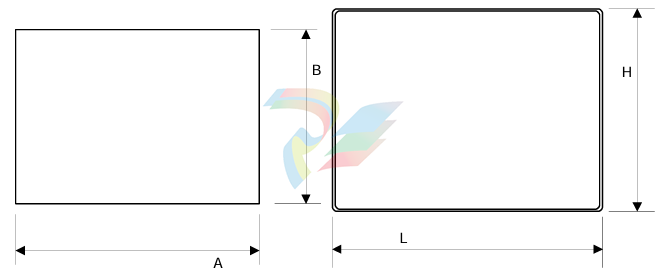

Dimensions

Faceplate LxH 287x232 mm (11.30x9.14“)

Cutout AxB 276x221 mm (10.87x8.70“)

Mounting depth (type

0050)

91 mm (3.58”)

eTOP33C-0050

10.4” VGA TFT color panel with touchscreen

PROT-04

Disposable protection foil for 10.4" eTOP touch panels (10 pieces)
