UniOP eTOP30. eTOP32 eTOP32-0050 Human-machine interface equipment

UniOP eTOP30. eTOP32

The eTOP30. and 32 are state-of-the-art HMI devices with a touch screen interface and a 10.4” graphic

display (9.6” for monochrome version). The novel aluminum bezel offers a rugged and convenient flat

design and an appealing look

10.4” diagonal graphic color display

9.6” diagonal graphic monochrome

LCD display

Available in TFT color, and

monochrome

VGA (640x480 pixels) resolution

Shows up to 30 rows, 80 characters of

information

Resistive touch screen

Connection to industrial bus systems

and Ethernet (requires optional plug-in

modules)

Compatible with HMIcontrol and local

I/O subsystems

Large memory size (8 MB Flash) on

removable media

IP65 front panel protection

Programmable with UniOP Designer

version 5.08

The eTOP HMI panels are part of the eTOUCH family of touch screen products. All of the eTOUCH

products support the rich common functionality of the UniOP operator panels:

Powerful and intuitive programming with the UniOP Designer software

Support of more than 130 communication drivers for industrial devices

Optional modules for fieldbus systems (Profibus DP, DeviceNet, Interbus, CANopen) and Ethernet

Display data in numerical, text and bargraph format

Dynamic graphic objects

Data acquisition and trend presentation

Analog gauges

Recipe data storage

Keyboard/Touch macro editor

Alarms and historical alarm list

Eight level password protection

Report printing to serial printer

The product is available in two versions that differ only by display type.

Display Colors Backlight Lifetime

eTOP30 TFT color LCD 256 CCFL

eTOP32 Monochrome LCD- CCFL

Display

Graphic resolution 640x480 pixels

Active display area 218x159 mm (10.4”diagonal) / 196x147.6 mm (9.6”diagonal)

Rows/columns 30x80

Character height -

Scalable fonts Yes

User definable characters 256

Contrast regulation Software with temperature compensation (only eTOP32)

Memory

User memory 8 MB SSFDC memory card

User memory expansion -

Front panel

Function keys -

System keys -

Touch screen Resistive (guaranteed 3 M operations)

User LED’s  -

System LED’s  5

Connections

PC/Printer port Yes

PLC port RS-232. RS-485. RS-422. 20 mA CL

Aux port (fieldbus and Ethernet

connection)

Yes, with optional modules

External keyboard port No

Programming speed 9600 - 38400 bps

Functionality

Page size -

Number of variables per page Unlimited

Recipe memory 32 KB

UniNet network Client/Server

Alarms 1024

Event list 1024

Alarm info page Yes

Password Yes

Battery Yes

Hardware RTC Yes, battery backed

Screen saver Yes

Buzzer Yes, audible feedback for touch screen

Power supply voltage

Max power consumption

Fuse

Weight

Operating temperature

Storage temperature

Operating and storage humidity

Protection class

18 - 30 VDC

~ 700 mA at 24 VDC

Automatic

~ 2.25 Kg

0 to 45 °C -20 to +70 °C

5 - 85 % RH non-condensing

IP65 (front panel)

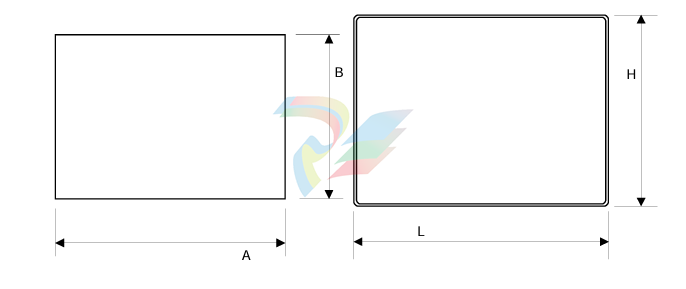

Front dimensions and cutout

Faceplate LxH

Cutout AxB

287x232 mm

276x221 mm

11.30x9.14“

10.87x8.70“

Cutout depth (version -0050)

91 mm

3.58”

Max panel thickness

5 mm

0.2”

eTOP30-0050

10.4” VGA TFT color panel with touchscreen

eTOP32-0050

9.6” VGA monochrome panel with touchscreen
