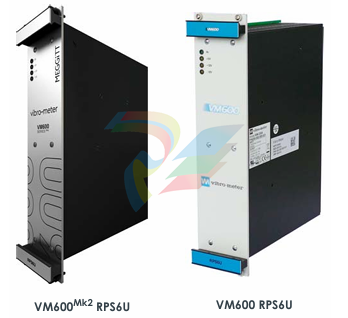

VM600Mk2/ VM600 RPS6U rack power supplies vibro-meter

 • Earlier versions of the RPS6U (PNR 200-582-x00-01h or earlier) that define the power as a rated power of 300 W,   with nominal output (supply) voltages of +5 VDC up to 35 A, +12 VDC up to 6 A and −12 VDC up to 2 A. 2. In 2021, VM600Mk2 (second-generation) machinery monitoring systems were launched with improved rack modules, notably the MPC4Mk2 + IOC4Mk2, RLC16Mk2 and CPUMMk2 + IOCNMk2. VM600Mk2 systems use the same system infrastructure as first-generation VM600 systems, that is, VM600Mk2 is backward compatible with existing VM600 (VM600Mk1) racks and power supplies. However, VM600Mk2 versions of the ABE040 system rack (PNR 200-040-100-016) and RPS6U rack power supplies (PNRs 200-582-200-12h, 200-582-500-12h and 200-582-600-12h) are also available. The VM600Mk2 versions are the same as the latest VM600 versions, except for the specific artwork/branding/finish. More specifically, the front panels of RPS6U rack power supplies are bare aluminium for the VM600Mk2 versions (PNRs 200-582-200-12h, 200-582-500-12h and 200-582-600-12h) and painted for the VM600 versions (PNRs 200-582-200-02h, 200-582-500-02h and 200-582-600-02h).

Environmental Temperature

 •Operating

 •Storage Humidity (according to IEC 60068-2-30) Vibration (according to IEC 60068-2-6) Shock (according to IEC 60068-2-27) Drop test (according to IEC 60068-2-31) MTBF (according to MIL-HDBK-217F) Conformal coating Indoor use Approvals Conformity Electromagnetic compatibility Electrical safety Overvoltage category Vibration Environmental management Russian federal agency for technical regulation and metrology (Rosstandart) : 0  to 70 °C (32 to 158 °F) : −40 to 85 °C (−40 to 185 °F) : 5 to 90 %, non-condensing : 10 to 55 Hz, 0.35 mm peak below resonance and 2 g peak above, 6 hours /axis : 6 g peak, 11 ms, half-sine pulse, 3 shocks /axis : 30 ° drop angle : > 40 000 hours at 70 °C (158 °F) : Applied to the circuitry of the power supply for additional environmental protection against chemicals, dust, moisture and temperature extremes : Limited to indoor use only : European Union (EU) declaration of conformity (CE marking). EAC marking, Eurasian Customs Union (EACU) certificate/ declaration of conformity. : EN 55022 class “B”. FCC Docket 20780 curve “B”. IEC 61000-4-2: Performance criteria B, 4 kV contact discharge and 8 kV air discharge. IEC 61000-4-3: Performance criteria A, 10V/m. IEC 61000-4-4: Performance criteria A, 2 kV 5/50 ns, 5 kHz, direct IEC 61000-4-6: Performance criteria A, level 3 IEC 61000-4-8: Performance criteria A, 50 Hz / 30 A / m TR CU 020/2011. : IEC / EN / UL / CSA 60950-1, 2nd edition. TR CU 004/2011. : OVC II : IEC 60255-21-1 (Class 2) : RoHS compliant (2011/65 / UE) : Pattern approval certificate OC.C.28.004.A N° 60224
