EMERSON PMCspan PMC Expansion Mezzanine

EMERSON  PMCspan   PMC Expansion Mezzanine

The PMCspan board provides

VMEbus processor modules

with greater expansion

capabilities

Single-slot 6U VMEbus format

PLX6150 PCI-to-PCI interface

bridge

Support for two single-wide or

one double-wide PCI Mezzanine

Card (PMC) per PMCspan

Stacking capability

Front-panel and/or P2 I/O

Compliant with PCI local bus

specification (revision 2.1)

Injector/ejector handles per

VME64 extensions

Compatible with Emerson’s

PowerPlus VME series

The Emerson Network Power PMCspan board allows users to customize their exact I/O

requirements with Emerson’s VME-based CPU modules designed around the PowerPlus

architecture.

When a PMCspan board is coupled with an Emerson processor module, the system

provides up to six PCI Mezzanine Cards (PMCs), more expansion capability than any

other VME-bus processor module.   Each PMCspan board supports either two single

wide or one double-wide PMC.   By stacking PMCspan boards onto a processor module,

a total of four additional single-wide PMCs can be added to Emerson’s compute

engines – either today or as future application growth demands.

The PMCspan is a standard 6U single-slot VMEbus module that links to its host board

via a PCI expansion connector.   It supports both front panel and P2 I/O access for

customer supplied PMCs

ProDuCT oFFErIng

In order to support the increased PCI bus loading

associated with additional PMCs, PMCspan uses the

PLX6150.  This PCI-to-PCI interface bridge supports a

32-bit primary bus interface and a 32-bit secondary

bus interface.  PMCspan mates directly with the host

CPU via the separate PCI expansion connector.

When the maximum of two PMCspan modules are stacked

together, the top board does not require a second PCI

to-PCI interface bridge.  Software views this secondary

module as an extension to the primary PMCspan.

PowEr rEquIrEMEnTS (no PMCS InSTallED)

Power:    +5V @ 0.44 ampere (max.)

+12V @ 0 ampere (max.)

–12V @ 0 ampere (max.)

BoarD SIzE

Height:  233.4 mm (9.2 in.)

Depth:  160.0 mm (6.3 in.)

Front Panel Height:  261.8 mm (10.3 in.)

Width:  19.8 mm (0.8 in.)

EnVIronMEnTal

Operating Non-operating

Temperature: 0° C to +55°C

forced air

cooling–40° C to +85° C

Altitude: 5.000 m 15.000 m

Humidity (NC): 10% to 80% 10% to 90%

Vibration: 2 G RMS,

20–20.000 Hz

random

6 G RMS,

20–20.000 Hz

random

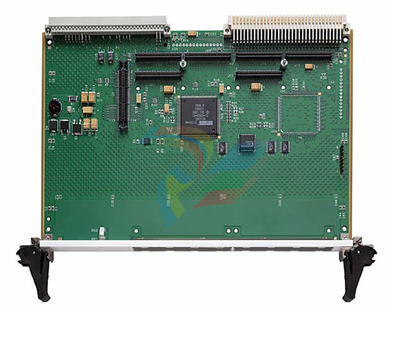

[caption id="attachment_31845" align="alignnone" width="223"] PMCspan[/caption]

Ordering Information

Part Number Description

PMCSPAN16E-002      Primary PCI expansion for MVME2300/2400/5100 w/Scanbe handles, 6E

PMCSPAN16E-010 Secondary PCI expansion for PMCSPAN16E-002 w/Scanbe handles, 6E

PMCSPAN26E-002  Primary PMC expansion for MVME5100/5110/5500 w/IEEE handles, 6E

PMCSPAN26E-010 Secondary PMC expansion for PMCSPAN26E-002 w/IEEE handles, 6E

Documentation

PMCSPANA/IH PMC Carrier Installation and Use Manual

ElECTroMagnETIC CoMPaTIBIlITy (EMC)

Intended for use in systems meeting the following

regulations:

U.S.: FCC Part 15. Subpart B, Class B c

Canada: ICES-003. Class B c

This product was tested in a representative system to

the following standards:

CE Mark per European EMC Directive 89/336/EEC  c

with Amendments; Emissions: EN55022 Class B;

Immunity: EN55024

SaFETy

All printed wiring boards (PWBs) are manufactured with

a flammability rating of 94V-0 by UL recognized

manufacturers.
